26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line

Name: 26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line
Brand: XWELL
Price: 6000 USD

Brand Name : XWELL

Model Number : MD-ADW

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 6000 - 9000 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100pcs per month

Delivery Time : 10-15 days

Packaging Details : Wooden box

Applicable Industries : Manufacturing Plant

Machinery Test Report : Provided

Warranty : 1 Year

Pack size : X direction: 26; Y direction: 26

Welding current : 5000A 8000A

Voltage : 220V/380V(AC)

Power : 4000 W

Contact Now

Double Side 18650 26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line

Description:Designed for 18650, 26650... battery pack welding,like E-bike,scooter,and electro mobile battery pack welding. 5000A invert spot welding power supply. high quanlity welding effect. Servo motor driving.fast, stable welding.
Programmable welding process,can produce any shape battery pack.
Real-time welding effect monitoring warning for NG welding spot.

Features:
 1. The automatic welding current monitoring system can monitor the welding current in real-time;
 2. Suitable for large-scale automated spot welding and assembly line matching of battery packs;
 3. High welding efficiency, taking 18650 as an example: about 2500-3000PCS of cells/hour:
 4. Simple programming, with anti fooling configuration, easy for ordinary employees to operate the equipment.
 5. Easy to adjust and use, with independently adjustable welding needle spacing and pressure

Battery Spot Welding Machine Specification

Model No.	MD-ASW
Y-axis travel	500mm (customizable)
X-axis travel	350mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	1000mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	99 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1750mm
Power	4000W
Machine weight	200KG
Max bearing weight of Y-axis	35KG
Input power supply	double-phase AC 220V/50Hz AC380V 3 phase
Air Source	0.4-0.6 Mpa

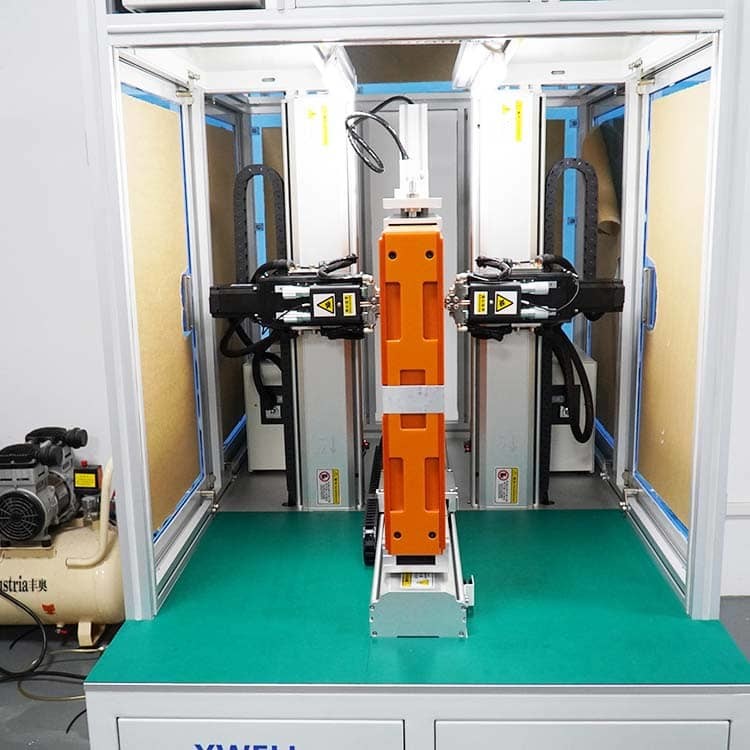

Double Side Spot Welding Machine Details
