Ordinary AC220V 8 Channel Prasmatic Battery Cell Sorting Machine Battery Sorter

Name: Ordinary AC220V 8 Channel Prasmatic Battery Cell Sorting Machine Battery Sorter
Brand: XWELL
Price: 10000 USD

Brand Name : XWELL

Model Number : XW-BPS08

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : USD 10000 - 15000 / pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Marketing Type : Ordinary Product

Machinery Function : Sorting

Input Voltage : AC220V/50Hz

Power : <1000W

Efficiency : 600 pcs/h

Internal Resistance Test : Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm

Voltage Test : Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV

Contact Now

8 Channel Prasmatic Battery Cell Sorting Machine Battery Sorter

Battery Sorting machine Description

The 8 hannel battery sorter of cylindrical battery automatic sorter is used for automatic sorting of voltage.This test and sorting is composed of PLC control + PC industrial computer, PLC control AC servo motor, stepping motor
and cylinder to complete sorting function, PC is responsible for data acquisition and processing, as well as data preservation.
The number of finished cylindrical cores sorted is about 4500 per hour. The mechanical structure design is simple and generous,
the system test performance is stable, the quality is first-class, is currently a high cost-effective cylindrical battery sorting
equipment in the market.

Customization

1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

3. Sort by cell's voltage and impedance up to 8 groups.

4. Automatic sorting control.

5. Fast sorting speed

6. Easy to refill cells during the process.

7. Wheels design, easy to move the machine to any operating place.

Prismatic Battery Cell Sorting Machine Advantages

1. Square 50 * 160 * 118, 36 * 130 * 200, 30 * 130 * 200 batteries;

2. The positive and negative electrodes are clean and free of dirt.

Prismatic Battery Cell Sorting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Prismatic cells
Receiving Channel	8 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	600 pcs/h
Weight	<300KG
Dimension	2250mm(L)1200mm(W)1630mm(H)
Tester	HK3561, BT3562
Productivity	600 pcs/h

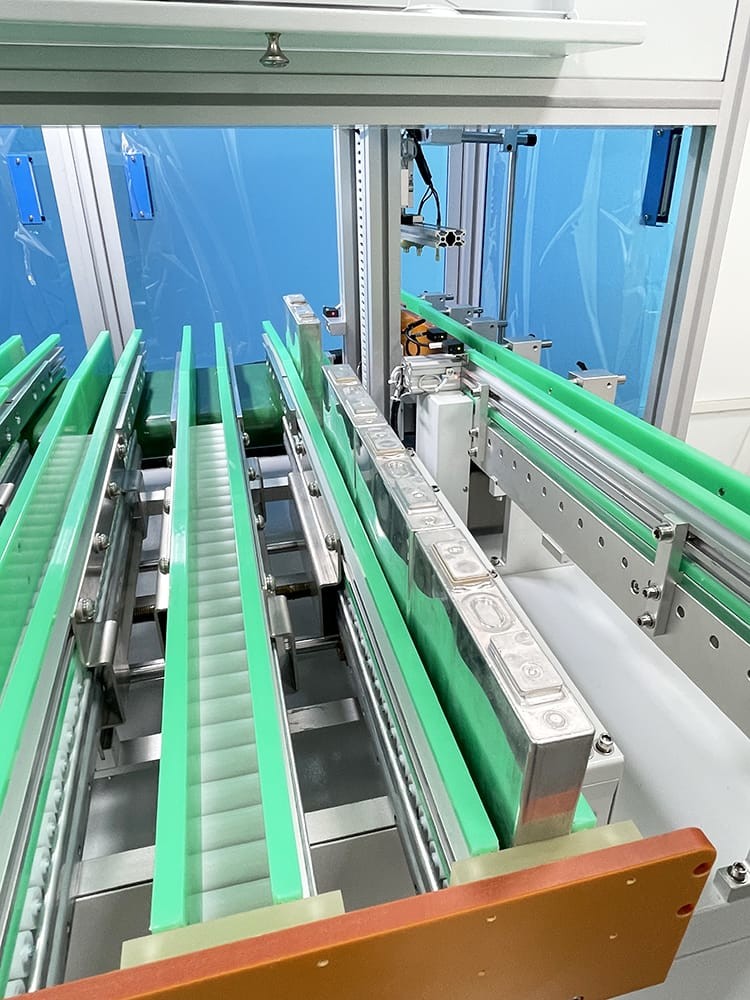

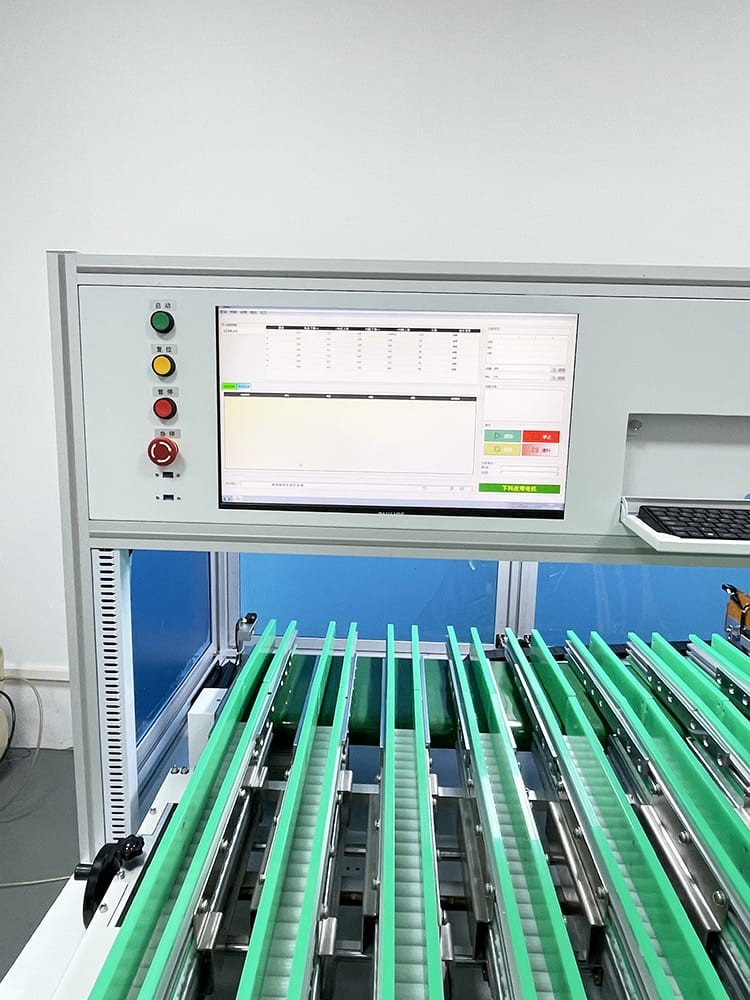

Prismatic Battery Cell Sorting Machine Details

Ordinary AC220V 8 Channel Prasmatic Battery Cell Sorting Machine Battery Sorter
